The Turnigy 9XR Website is online!
And yes the price is $49.99
All posts by foamaircraft
HobbyKing philosophy applied to Marketing – The Turnigy 9XR tale
Over the last few months, from time to time, the HobbyKing (cleverly) releases some information or image.
Whenever the interest on 9XR falls in forums (and the like), HobbyKing releases something else … So, the subject has been discussed (a lot) in various forums.
See here and here, for example. This site has been no exception, as indeed can be seen here, here, and here.
This time the “high” is the launch of turnigy9xr.com domain.
The website was active for a few moments and then removed.
It was enough to someone be able to extract a few more photos …
The potential of Marketing outsourcing (us) and social media to prepare the launch of a product. A textbook example. Well done HobbyKing!!
Let’s just hope that the 9xr be as good as expected …
First batch of 9XR are complete!
You have paid attention to the hobbyking twitter feed?
(…) First batch of 9XR are complete and awaiting packaging. Now writing manual. (…) I’m working on the QuickStart guide and as soon as its printed and all packed with CE cert they can go on sale.(…) already Pre hacked and easier to hack than the 9x.(…) includes programming port, module and dual trainer port for fpv power.(…)
GoPro HERO3
The GoPro launched a new model of its bestseller Camera Hero.
[youtube]http://www.youtube.com/watch?v=A3PDXmYoF5U[/youtube]
It is the third of the family and comes in 3 flavors.
GoPro HERO3 Black Edition
- 4kp 12 fps, 2.7kp 30 fps
- 1440p48/1080p60/720p120 fps
- 12MP / 30 fps Burst
- Wi-Fi Built-In
- Wi-Fi Remote Included
- GoPro App Compatible
- Pro Low-Light Performance
It’s available now for pre-order, at US$399.99.
GoPro HERO3 Silver Edition
- 1080p30/960p48/720p60 fps
- 11MP / 10 fps Burst
- Wi-Fi Built-In
- Wi-Fi Remote + App Compatible
It’s priced at $299.99
GoPro HERO3 White Edition
- 1080p30/960p30/720p60 fps
- 5MP / 3 fps Burst
- Wi-Fi Built-In
- Wi-Fi Remote + App Compatible
It’s priced at $199.99.
____________________________________________________________
What does that mean for fans of RC?
It means that the older models just got cheaper …I now I can put one (or more) GoPro Naked aboard brittle parkfliers without risking the family budget. Check prices here
Also the used cameras market became more attractive.
It’s good news. We do not need 4K! Or do we?
Turnigy 9XR – Another small glimpse
HobbyKing released another picture of the new Turnigy 9XR.
Taking advantage of the launch of the Turnigy Transmitter Bag, they included a single image of the Turnigy 9XR in the promotional video of this new product … Well done. It was enough to (re)talk about this launch (again) before it is available…
Marketing at its best … and yes, I’m also waiting for it.
The hobbyking introduced today the new Bixler
Turnigy 9XR
Turnigy will launch a new radio to replace the much-loved 9x.
For now there is not much information available, but … I’m curious.
– The 9XR has a pin-out in the battery compartment for easier custom firmware flashing without needing to open the case.
– It will use the atmega chip and can be flashed with your existing customized software. In fact, it comes standard with a similar ROM to ER9x.
– Back-lit screen
– Has inbuilt and module based antenna system
– Spare parts available
– Improved switch and pot quality
– The 9XR will be $50.00
– We’re working with Frsky on a module for the 9XR
When will be available for pre-order? If I may ask …
I’m taking 50 dollars out of my wallet at this very moment …
More at www.rcgroups.com and twitter.com
How to keep your (ESC) cool
I use this trick to keep my “30Amps ESC” cooler and with longer life.
Usually the “ESC” with less than 50Amp comes only with an aluminum plate cover to serve as a heatsink, but covered with an heat shrink plastic.
This combination does not make much sense. So I decided to seek a better solution that does not involve much work.
What I sought was some aluminum heatsink used in computers (made for use in RAM or GPU chipsets) that were small and practical to use.
This was the solution that worked best. Aluminum heatsink + Thermal Adhesive tape
.
Some come with the Thermal Adhesive already applied. Just peel and stick.
All work necessary is to cut the heat shrink plastic gently and only enough to properly fit the new heatsink on top of the original aluminum plate.
Done …
This trick will turn an 30Amps Esc in to an 45Amps one? No.
But it will allow you to use 28Amps (continuous) without the nasty electrical burning smell …
Hobbyking / St Model ASW28 Hacks
How to turn something good into something better?
As the original ESC does not work with a 3s battery, I’ve changed the ESC with a new one, and now it works great. Now we have enough power to fast climbs . I am using 1000/1500mAh 25c 3s batteries.
Simply cut the original cables that connect the motor to the ESC and put together a new set of 3.5mm Gold Connectors. Connect a 18-20A ESC and you’re done. Easy.
I did not change the motor, but the propeller is not the original (destroyed in a crash), but a folding 10×6 I recovered from an old airplane. With this setup the engine is not hot with 5-6, 100 meters (328 feet) rises for each flight. 20 to 30 minutes flight time on a normal day with an 1000 mAh battery. If the day is good for Thermal flight, we managed to have the asw28 in the air until we’re tired of flying.

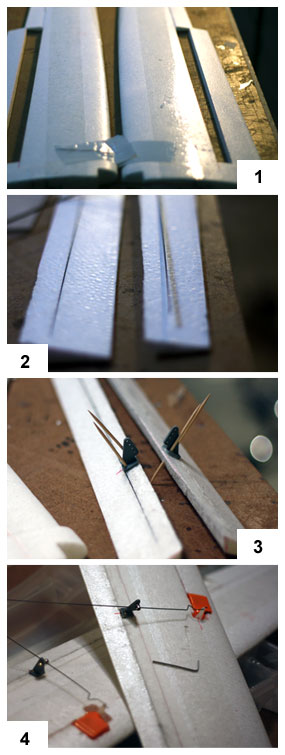

To facilitate the landings, because this ASW-28 floats forever, I’ve put flaps (one more servo per wing). So, now I can land close to me and in shorter fields.
To put flaps, I cut the wing along the line defined by the ailerons up to 4 cm before the wing root. I embed a carbon strip of 6 mm in each of the wings and in each of the flaps to ensure greater stiffness of the assembly.
To attach the horn, I used epoxy glue and reinforced with toothpicks. After that done, I went looking for the simplest and cheapest of all servos. These were placed on top of the wing, since, if placed beneath the wing, the servos/horns would be too vulnerable.
First I tested the flaps with two positions (8º to fly in thermal and 20º for landing), but then changed, and left only the landing configuration (25º).
All these changes caused a decrease in the final speed of the ASW-28 in relation to the original version of the wing, but is now, an much more fun plane to fly.
Another modification that I recommend is the placement of a transparent adhesive tape (with 3-4 cm wide) along the entire span, including the winglet. This small change greatly increases the resistance of the wing and is very easy to do.
Video 1:
[youtube]http://www.youtube.com/watch?v=S_HkOarjxJM[/youtube]
Video 2:
[youtube]http://www.youtube.com/watch?v=m3VRV-TAGlE[/youtube]

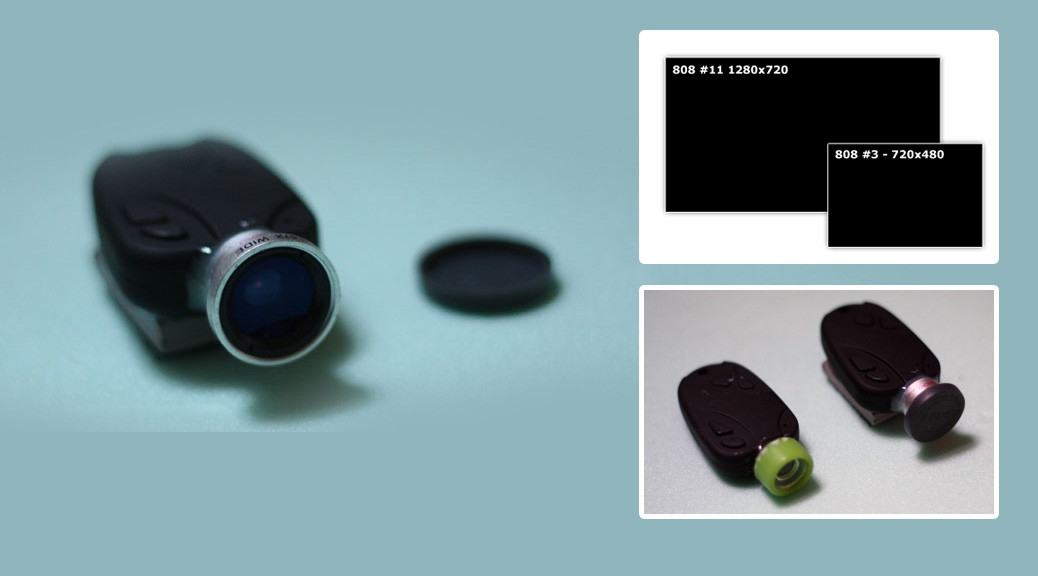

An New version of HD 808 Camera is selling. It’s #16 version turn!!
It is already selling a new version of the camera … The new 808 model is the version #16. In this video, made by Techmoan, we can see a very good comparison between models #11 and #16.
[youtube]http://www.youtube.com/watch?v=sSg-8ktRq4U[/youtube]
On the question where to buy, the answer remains the same …. We have to look on Ebay. We just have to pay attention to the fake sellers. I bought my #11 camera in the eletoponline365 Ebay store.
Basic Specifications:
- Brand new model of 808 Car Key Chain Micro Camera, identified by Chuck Lohr’s web site as #16, and now it’s available!
- 1/4” CMOS WXGA HD Sensor / H.264/AVC1 DSP / Hynix 512M DDR2
- Rechargeable LIPO Battery (250mah), with Battery Charger Manage IC
- Video: 720P HD H.264/AVC1 video codec, 1280 x 720 30fps .mov
- Photo: JPG 1280*960 (no degrading by upsizing to interpolated “5 megapixel” size)
- microSD card slot, supports up to 32GB (memory card not included), suggest using Class 4 or above
- USB2.0, plug and play, easy connection with computers, no driver needed.
- Super mini size, only around 50mm (L) x 32mm (W) x13mm (H)
- Super light-weighted: only approx 17g!
- Multifunctioned, you can use it as a mini DVR, a camera, a webcam, a removable USB drive.
More information about 808 Cameras in this Link
All these purchases were made in ebay stores. I do not support or endorse any of these stores and do not take responsibility for any purchases made on ebay.
